Servo motor has a long overload ability, have smaller inertia and the big plugging around moment.

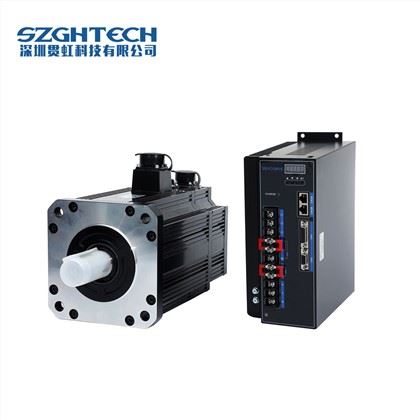

7500W Ac Servo Motor and Driver


Servo motor has a long overload ability, have smaller inertia and the big plugging around moment.
Send Inquiry

7500W Ac Servo Motor and Driver

Hbd61397a57ea4b18a247b7a84f515431p


Features

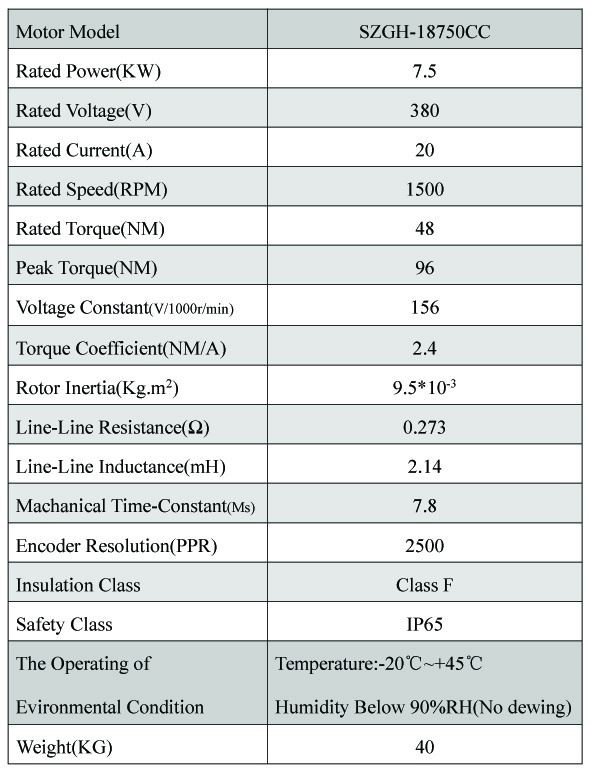

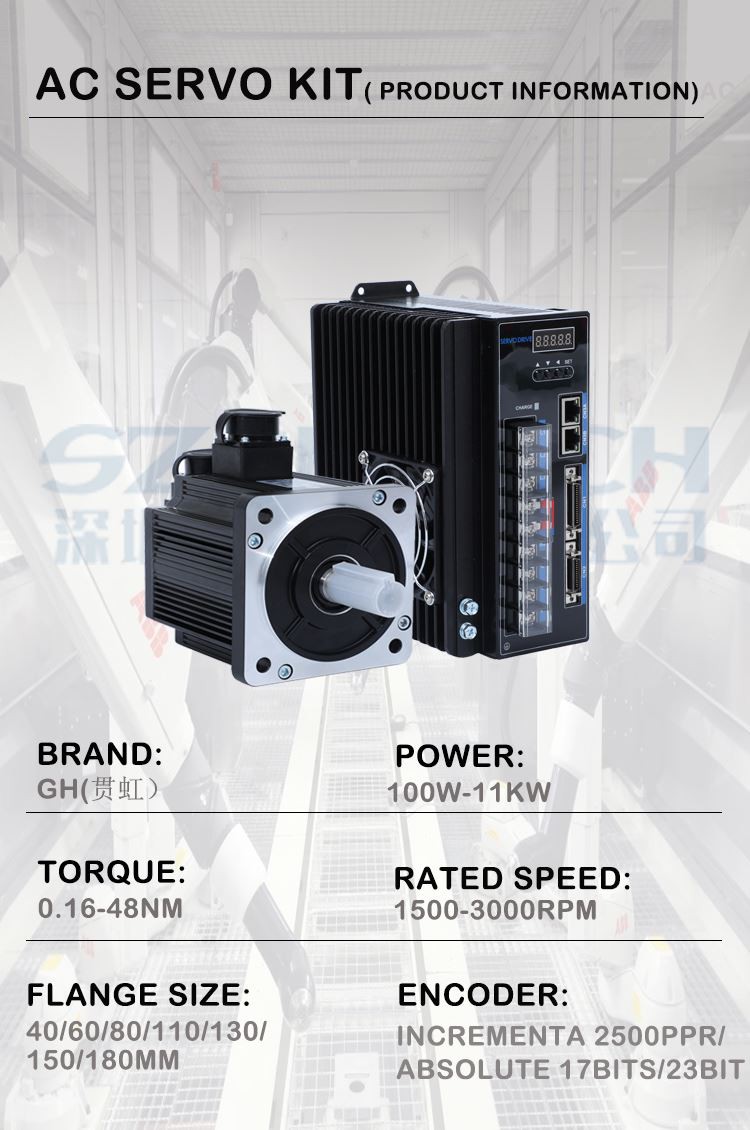

GH-18750CC is 180 flange , 7500W,48NM,1500RPM SERVO MOTOR,380V .

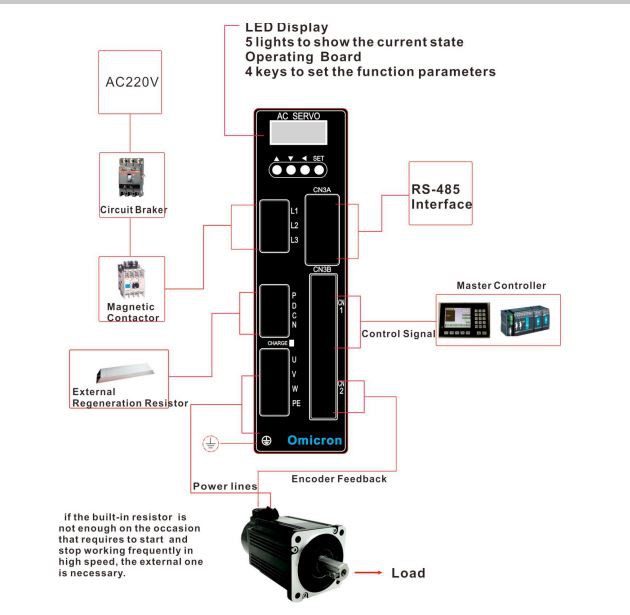

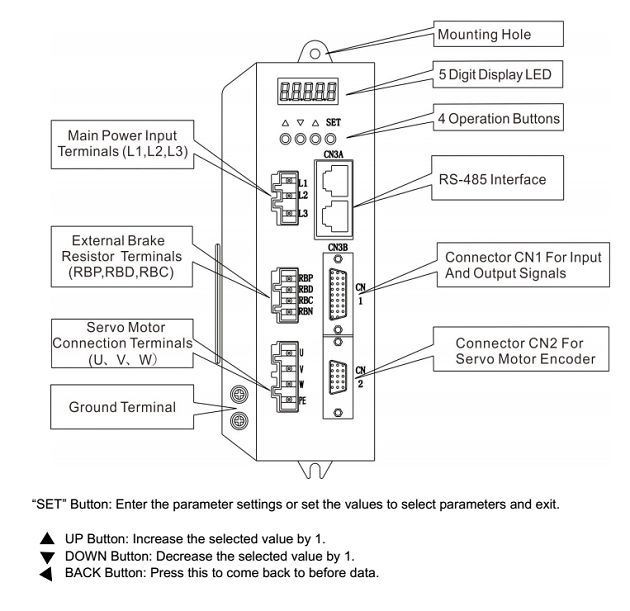

The match servo driver, GH-SD4075 & GH-753 that matching for 7.5KW servo motor.



GH series servo motor developed and produced by our company is permanent magnet AC servo motor, using high-performance rare earth permanent magnet material, high power density, strong overload capacity, good back potential sine, low speed characteristics; Support 220V and 380V AC servo drive, motor accessories support brake, oil seal, motor adaptive incremental 2500 line, absolute 17 bit and other encoders.


_20210817162726

Hbc8c73dbe8b84a958399e641043246d9S

H6aada374ce7d45d883021e74cc0b9923f

]BVIN0(GRPITID%ZGU37~R5

_20210813174452





FAQ

Q: Do you support customized manufacturing?

A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample price.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.


If you have any other question our 7500W Ac Servo Motor and Driver , pls feel free to contact us as below!


Send Inquiry

FAQ

The following are the common questions we have collected about CNC Controller.
1. Q: What services do you provide?
+
A: We offer one-stop service. We can customize the most suitable processing solution based on your ideas and product drawings. We have partnerships with major shipping companies such as DHL, FEDEX, and UPS to ensure timely delivery. Products can be delivered to you within 3-6 business days.
2. Q: What can you do for CNC machine tool retrofit and upgrade?
+

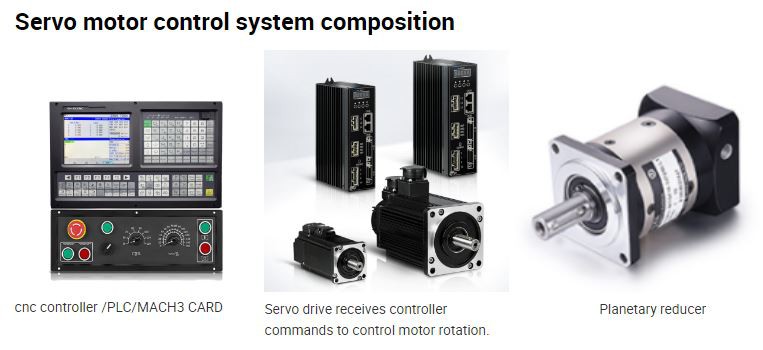

A: We can provide a complete CNC system. Our controller supports ATC and PLC and runs G-code. Support multiple languages, Russian, Spanish, English, Chinese, etc.The kit includes the controller, spindle servo motor and driver, servo motor drivers for each feed axis, and all standard cables, user manuals, and wiring diagrams. Our CNC control system is fully connected before shipment and tested 3-5 times for plug-and-play operation.
3. Q: What is your after-sales service like?
+
A: Our professional after-sales engineers provide 24-hour, one-on-one, free service. You don't have to worry about any after-sales issues.
4. Q: What optional accessories are available for CNC machine tools?
+
A: You can choose different accessories based on your machining needs. CNC Lathe:Servo turret, hydraulic chuck, manual chuck, Parts Catcher, Tailstock，guide bush,Flying knife disc,Tailstock,living tool,bar feeder, chip conveyor, etc. CNC Milling Machine: Fourth and fifth axis CNC rotary tables,Tailstock,BT30/BT40 holder, tool setters, probes, etc.
5.Q: How do you maintain the machine?
+
A: You must receive safety training before use. Regularly clean chips, check the air supply/oil pressure, lubricate the guideways, and inspect tool wear.
