Single/Three Phase 3800W 15Nm 2500r/min servo motor with including incremental or absolute type encoderr for cnc router sewing machine servo motor kit

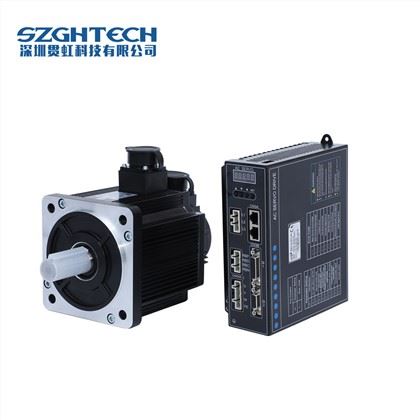

3.8KW AC Servo Motor Driver


Single/Three Phase 3800W 15Nm 2500r/min servo motor with including incremental or absolute type encoderr for cnc router sewing machine servo motor kit
Send Inquiry

Single/Three Phase 3800W 15Nm 2500r/min  servo motor with including  incremental or absolute type encoderr for cnc router sewing machine servo motor kit

Haa3dc96ae07547a6b2fa4dc2dd160083x

Features

GH-13380CC is 3800W servo motor, this model is very hot sale , optimum matching with our AC servo driver to real ize optimum servo performance

There is a type servo driver, GH-SD4038, that matching for GH-13380CC servo motor.



Motor Model GH-13380CC
Rated Power(KW)3.8
Rated Voltage(V)380
Rated Crrent(A) 12.0
Rated Speed(RPM) 2500
Rated Torque(NM)6
Peak Torque(NM)12
Voltage Constantv10r/min 60
Torque Coefficient(NM/A)1.3
Rotor Inertia（Kg.m²）0.76*10
Line-Line Resistance（Ω）1.46
Line-Line Inductance(mH) 4.7
Machanical Time-Constant(Ms)3.2
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)15


Application

Our servo motors are suitable for helping ch machine tool feed axes to achieve extremely smooth operation and excellent acceleration and deceleration performance.

It adopts fully enclosed structure, beautiful appearance and compact structure.

Adopting optimized electromagnetic design, low electromagnetic noise, stable operation and high efficiency.


Servo System

1.With Tamagawa encoder: Incremental(2500PPR/Absolute Servo Motor(17bits/23bits)

2.PositionControl:Pulse+Direction,Modbus:RS485/EtherCAT/Canopen/PowerLink


8(001)

9(001)

10

11

_20210817162726

Hbc8c73dbe8b84a958399e641043246d9S

H6aada374ce7d45d883021e74cc0b9923f


_20210813174452



FAQ

Q: May I know what’s the nearest airport from your company?

A: First Shenzhen Airport, then Guangzhou or Huizhou airport, welcome to visit us.

Q: When can I get the quotation?

A: We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

Q: What about the lead time for mass production?

A: 6-8 working days for mass production. It depends on your quantity, and we will try our best to meet your needs.


If you have any other question about AC Servo Motor Driver With Brake, pls feel free to contact us as below
