Home / Products / CNC Controller / CNC Lathe Controller / Details
CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)

Lathe Controller System Cnc Lathe


CNC lathe Controller: 1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Support Dual analog voltage(0~10V) & C-axis for Spindle servo(M800)
Send Inquiry



1000MC-3

Number of control axes

3 Axis

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Spindle functions

Gear, dual analog control, rigid tapping

Pre-reading function

Short line preprocessing 10,000 lines

FunctionATC+PLC and macro function
Encoder linesAny setting
User macro programYes
Our Services12 Months warranty；Provide professional CNC solutions；
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
Security function

Emergency stop, hardware travel limit, various stored travel checks, axis interlock, data backup and recovery

Compensation function

1) Pitch error compensation: 360 compensation points for each of X, Z, and Y axes, each point compensation amount ± 0.007 x compensation magnification

2) Tool compensation execution mode: moving tool/coordinate offset (can be set by parameters)

3) Tool compensation: 64 sets of tool length compensation

4) Tool nose radius compensation

5) Backlash compensation: (X, Z, Y axis) 0 mm~65535mm


1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

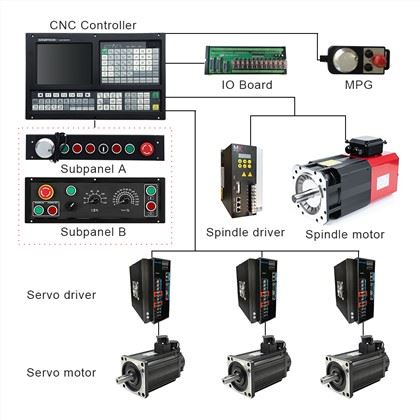

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC


7.-()

8.-&&()

9.-&()


FAQ

1. Can I trust you?

A: Sure, we're Alibaba verified supplier & Alibaba Trade Assurance Suppier.


2. How can we guarantee quality?

A: Always finishing a pre full testing by our professional engineers; Always final 100% Inspection before shipment.


3. What are your main products?A: CNC Controller/Servo Motor & Servo Driver/Spindle Servo Motor & Spindle Servo Drive/Robot Arms.


If you have another question, pls feel free to contact us as below.
