1) 3-5 Axis Fully English Type CNC lathe controller <br /> 2) 800x600 8.4 inch real color LCD displayer <br /> 3) Electric Turret & Binary code turret,Max: 99 pcs tools

5 Axis CNC Milling Controller


1) 3-5 Axis Fully English Type CNC lathe controller

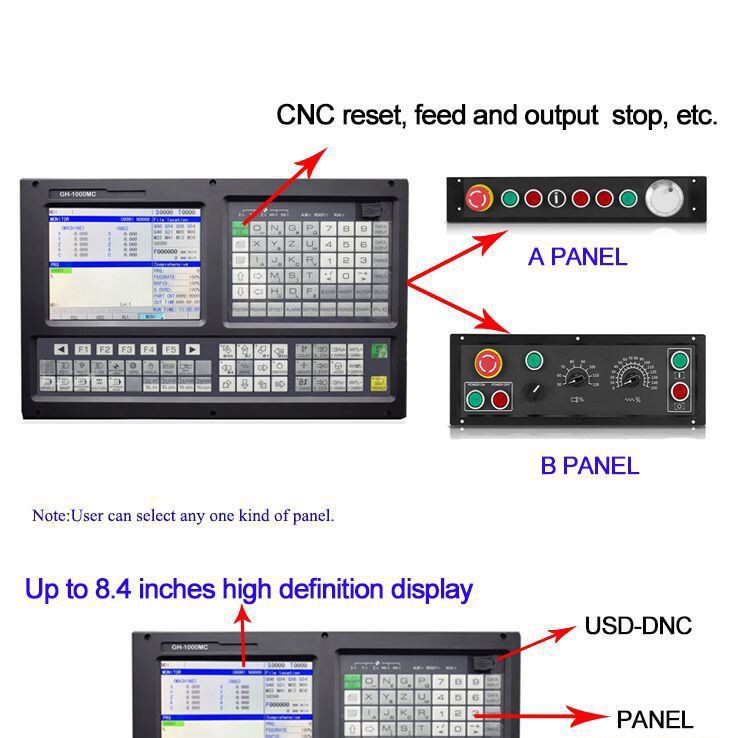

2) 800x600 8.4 inch real color LCD displayer
3) Electric Turret & Binary code turret,Max: 99 pcs tools
Send Inquiry

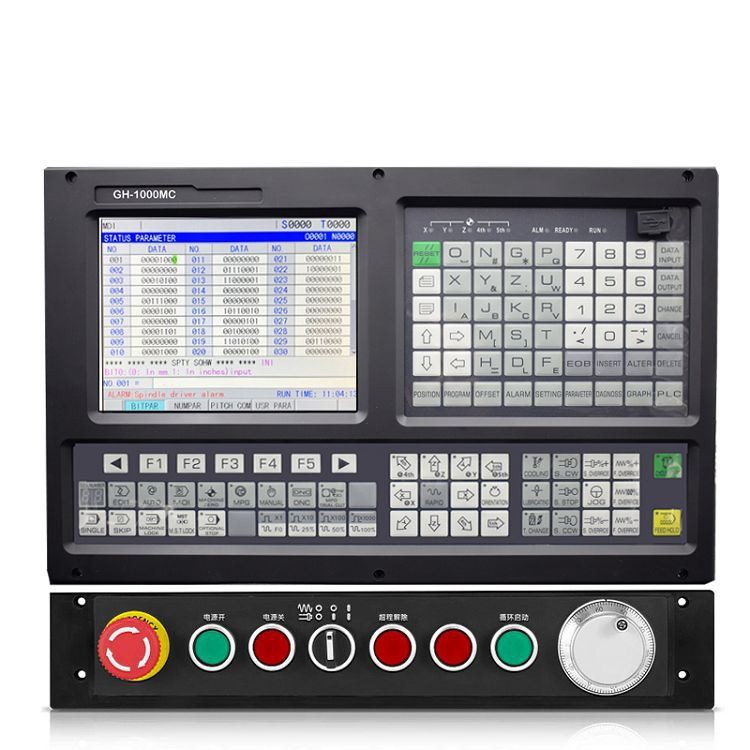

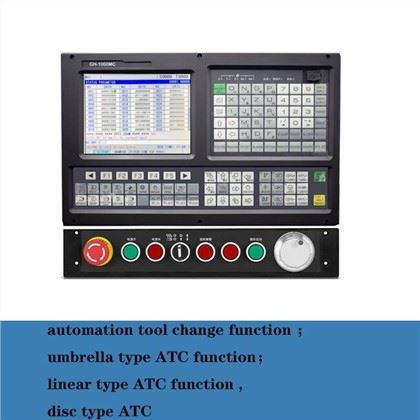

High quality best GH-1000MC-5 5 axis board homemade cnc milling controller

13(001)

1) 3-5 Axis Fully English Type CNC lathe controller

2) 800x600 8.4 inch real color LCD displayer

3) Electric Turret & Binary code turret,Max: 99 pcs tools

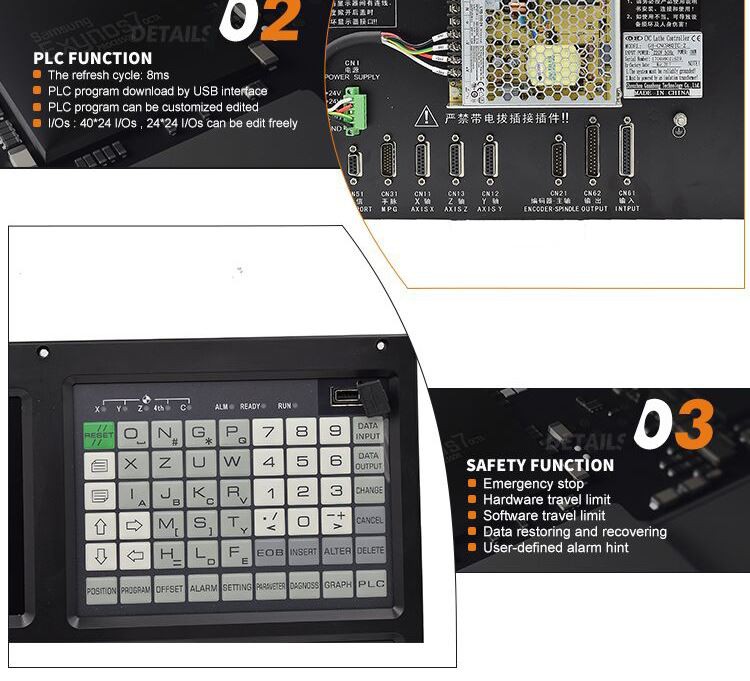

4) Support ATC , Macro function and PLC function

5) Max speed is 60m/min, feeding speed is 24m/min,0.1um control precision

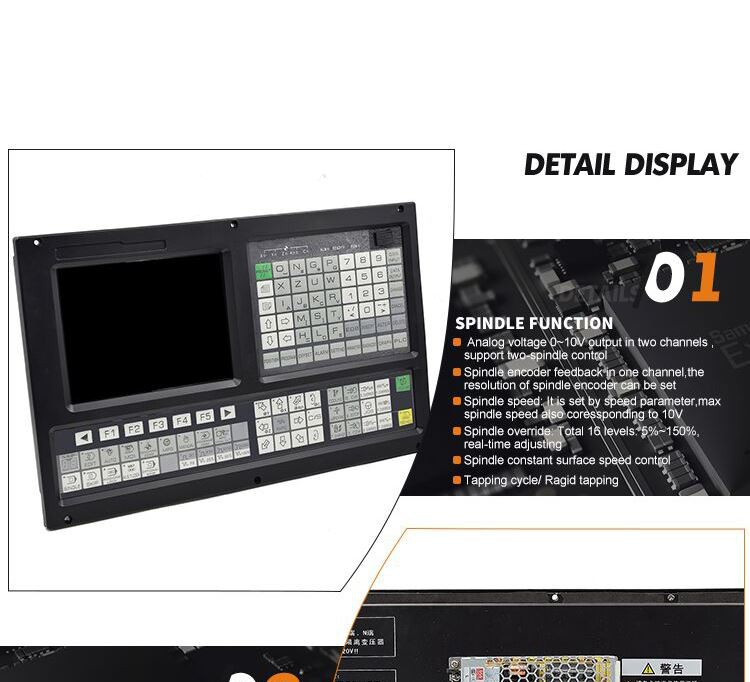

6) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing

7) High anti-jamming switch power(100V-240VAC 50Hz/60Hz -> 24VDC)

8) 64MB Memory , 56Mb user store room

9) With USB interface,it supports file operation in flash disk,system configuration and software upgrade

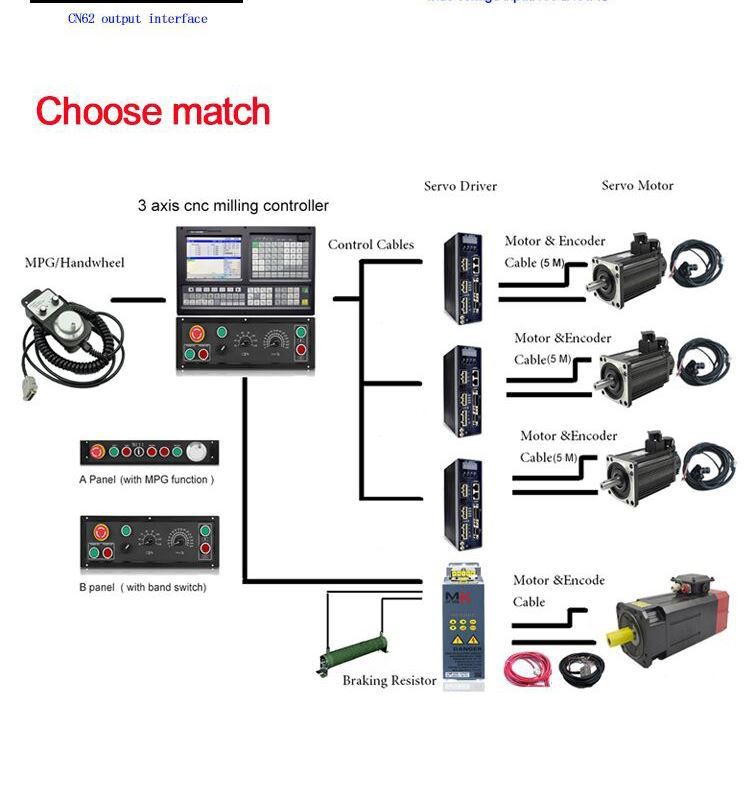

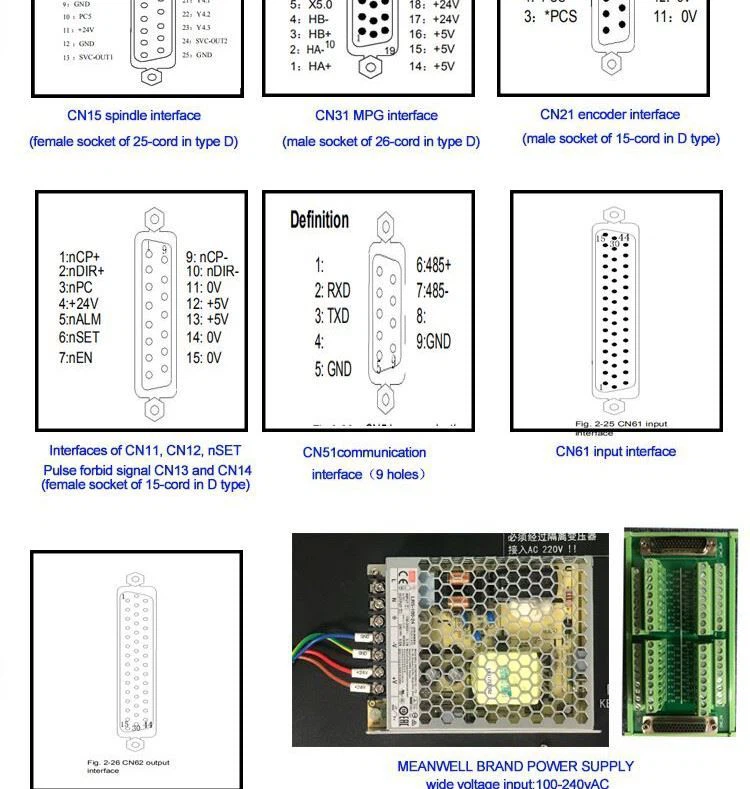

10) Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V

11) 32 bits ARM microprocessor+FPGA Technology.

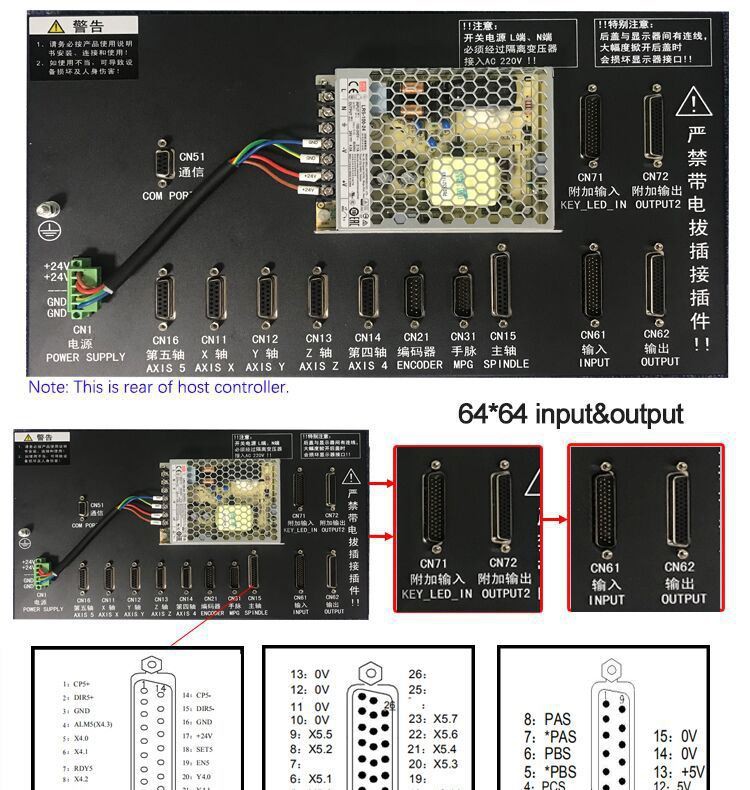

12) Basic I/O: 36X36 , can be edited freely

13) Cutter offset : C


Application: CNC Lathe & Turning Machinery and specially automatic equipment

2021011511532278eebab639a740e7ab9bd50b69492711 (1)20210115115328bdd43bc2a2e54424943e7a470ca42acf2021011511533441b06dd2ddaf403db9b370606d82078920210115115337598f1bf0c6d44bfda9604ed7e3b26744


FAQ

Q: Do you support customized manufacturing?

A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample price.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.


If you have another question, pls feel free to contact us as below
