The 2-axis lathe machine for sale is a kind of mechanical equipment for processing various materials, which has a number of patented technologies such as high rigidity and anti-deformation structure. It is widely used in the upgrading of hard rail CNC lathes, cam automatic lathes, and hydraulic lathes, realizing automatic production to save labor costs and improve product quality.

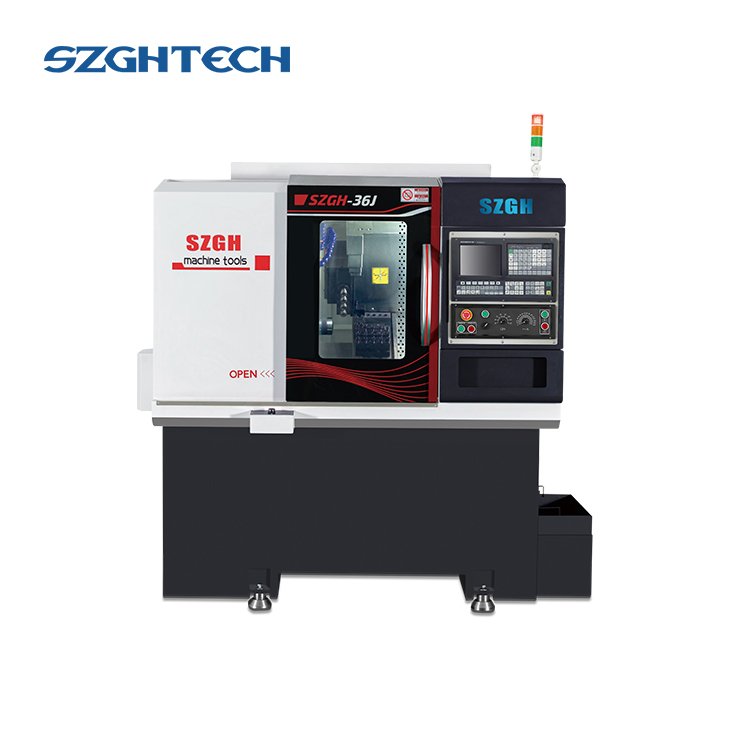

Lathe Machine For Sale


The 2-axis lathe machine for sale is a kind of mechanical equipment for processing various materials, which has a number of patented technologies such as high rigidity and anti-deformation structure. It is widely used in the upgrading of hard rail CNC lathes, cam automatic lathes, and hydraulic lathes, realizing automatic production to save labor costs and improve product quality.
Send Inquiry

Product Description

The 2-axis lathe machines for sale is a kind of mechanical equipment for processing various materials, which has a number of patented technologies such as high rigidity and anti-deformation structure. This lathe is suitable for the mass production of copper, iron, aluminum, stainless steel, and other bars with a diameter of less than 35mm, as well as the automatic feeding of forgings and pellets within 50mm.

The 2-axis lathe can process products under the condition that the cutting amount on one side does not exceed 2mm, the accuracy tolerance is within ±0.01mm, and the finish requirement is 1.6. Its structural design has high rigidity and can effectively resist deformation, thus ensuring stability and precision in the processing process. The lathe machine for sale uses a number of patented technologies to provide efficient and precise machining capabilities.

This lathe has a wide range of applications in the industrial field. It can be used to manufacture various precision parts and workpieces, such as bearings, threaded rods, connectors, etc. Due to its suitability for the processing of different materials, it is very useful in the metalworking industry. Especially in cases where small diameter bars and pellets need to be produced in large quantities, the automatic loading function of 2-axis lathes can increase production efficiency and reduce manual operation.

product-1110-674



Standard Configuration

Project Unit Standard value Max value
Processing capacity Max. diameter of bar bore mm 35 -
Max. particle diameter (disk type) mm 250 300

Max. length of the workpiece		 mm 210 230
Cutting the amount of stainless steel on one side mm 2 3
The machining accuracy of the workpiece mm ±0.01 -
Surface roughness Ra 1.6 -
the height of the center tool holder mm 40 -
Turning Diameter mm 350 -
Square Knife Specifications mm 16 -
Travels X-axis effective travel mm 600 -
Z-axis effective travel mm 230 -
Y-axis Y-axis mode - side 4 power head -
Y-axis travel mm 140 -
Y-axis power head clamping type - ER16 -
Y-axis maximum speed rpm 2500 4000
Y-axis rapid traverse speed m/min 15 -
Maximum drill diameter mm 20 -
Feed X-axis rapid traverse m/min 25 30
Z-axis rapid traverse m/min 25 30
X-axis servo-motor power kW 1.3 -
Z-axis servo-motor power kW 1.3 -
Spindle Max.Spindle Speed rpm 3500 4000
Spindle Motor Power kW 3 -
Spindle nose taper - A2-4 -
Support hydraulic chuck size inch 6 8
Dimensions Dimensions mm 1750*1400*1800 -
Total Weight kg 1800 -



Machine tool specifications and component items Specification Standard Optional
Part Specifications Screw 25mm Taiwan ball grinding precision grade -
Guide rail 25mm Taiwan H-class linear guide rail -
Bearing 7015/7013 Wuxi two-axis Harbin high-speed angular joint fusion bearing
Spindle motor 3kW Variable frequency drive type 3.7kW servo spindle
Feed servo 1.3kW SZGH Servo -
CNC Control - SZGH
SZGH
Machine specifications Bed Type 30° Slant Bed -
Base form - Heavy-duty anti-deformation patented base -
Clamping method - hydraulic clamping -



product-1110-536

GH-1000TC
●1)2-5 Axis Fully English Type CNC lathe controller
·2) 800x600 8.4 inch real color LCD displayer
·3)Electric Turret & Binary code turretMax 99 pcs tools
·4)Support ATCMacro function and PLC function
·5)Max speed is 60m/minfeedingspeedis24m/min
·6)Adapted servo spindle can realize spindle continuous position rigid tapping,rigid
screw processing
·7)High anti-jamming switch power(100V-240VAC50Hz/60Hz->24VDC)
·8)64MB Memory,56Mb user store room
·9) With USB interface supports file operation in flash disk system configuration and
software upgrade
·10)Position Control Mode:Pulse+Direction/AB PhaseDual Analog voltage output of
0~10V
·11)32 bits ARM microprocessor+FPGA Technology
·12)Basic I/O:36X36 ,can be edited freely
·13)cutter offset: C

·14)Installing dimension, electric interfaces instruction system, and operating windows being compatible with those ofGSK980TDb Turning CNC System"
Application: CNC Lathe & Turning Machinery and especially automatic equipment



Machine Features

product-584-509 product-542-554

Spindle

The self-made high-speed paired bearing unit spindle adopts angular contact high-speed bearings, and the normal speed is 3500/min, which is suitable for large-scale machining. The clamping method can be changed from hydraulic to pneumatic clamping according to different usage occasions of customers. If high-speed and high-gloss requirements are required, a 6000-rpm high-speed electric spindle can be selected.

Rotary Cylinder

The standard configuration adopts a hydraulic rotary cylinder to make the clamping force stronger, more stable, and have a longer service life. It can be replaced with pneumatic clamping according to the actual situation.
product-570-414 product-494-374 product-569-352

ball screw

Taiwan brand 25 mm ball grinding precision grade screw rod

Machining of long shaft workpieces

It can realize the processing of a 120mm long workpiece with the nozzle holder.

Linear Guides

Taiwan brand 25mm Linear Guides precision grade

product-1110-1681

product-1101-488

Company Profile

We are a manufacturer of CNC systems and industrial robot arms with more than ten years of industrial experience. We have been committed to providing customers with the best industrial automation solutions. Our company is clearly structured and includes R&D, production, sales, and technical support departments to ensure that we can provide the best possible service.

We have robot arms, CNC systems, and milling/lathe machines for sale, can provide customers with a variety of automation solutions, and can package a complete set of automation equipment at one time.

1. Experienced International Sales： Presently our oversea sale team has more than 25 people, among them 10 people have more than 10 years of international business experience

2. Fast After Sale Service： Here we have 12 professional engineers who have more than 8 years of experience in this field for technical support, 5 engineers stationed overseas (Turkey, Romania, Russia)

3. Professional R&D team： We have 53 staff for R&D, including many doctors.20 engineers focus on this field for more than 13 years, always improving &Innovation

4. QC Team： Zero Error, We have 20 staff for QC test and inspection, all product we try our best to do Zero error

product-1024-497

Delivery and after-sales service

product-550-875product-1-1

FAQ

1. What is your delivery time?

The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.



2. Do you have a CE certificate?

Yes, we have CE certification, and machine quality is guaranteed.



3. What materials and applications are lathe machines suitable for?

Lathe machines are suitable for the processing of materials such as metal, wood, and plastic. They are widely used in manufacturing, workshops, and various industries for tasks such as turning, cutting, drilling, boring, embossing, and threading.



4. How accurate is the lathe machine for sale?

The accuracy of a lathe machine depends on several factors, including the quality of the machine, its precision, the control system, and the skill of the operator. Typically, high-quality lathe machines offer high machining accuracy and repeatability.



5. What is a CNC lathe machine?

CNC (Computer Numerical Control) lathe machines are automated machines that perform machining operations through pre-programmed instructions. They are controlled by computer software for precise and efficient machining. CNC lathe machine has the characteristics of a high degree of automation, high precision, and good repeatability, and is widely used in mass production and complex processing tasks in industrial production.



In short, our company's lathe machines for sale are of high quality and suitable for various processing needs.

As part of the lathe machine, we provide professional services and provide a wide selection of products. If you are looking for lathe machines for sale, we have what you need.

Our lathe machines adopt a number of patented technologies such as high rigidity and anti-deformation structure, which can meet your processing requirements. Whether you need to process copper, iron, aluminum, or stainless steel bars up to 35mm, or forgings and pellets up to 50mm, our lathe machines are up to the task. Our products have high processing accuracy, tolerances within ±0.01mm, and the finish reaches 1.6 grade.

So, if you want to buy a lathe machine, please contact us, and we will provide you with the best quality products and services.
