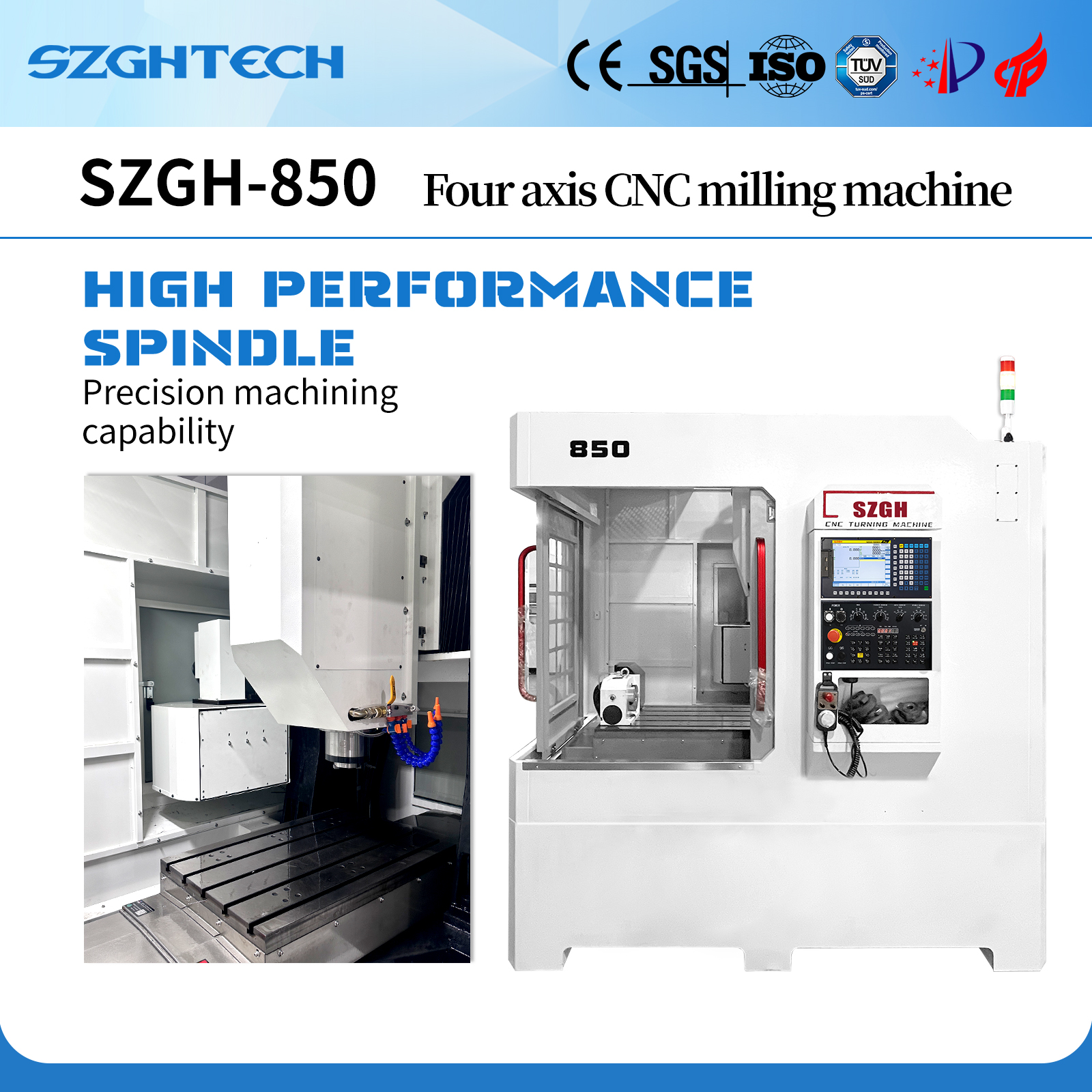

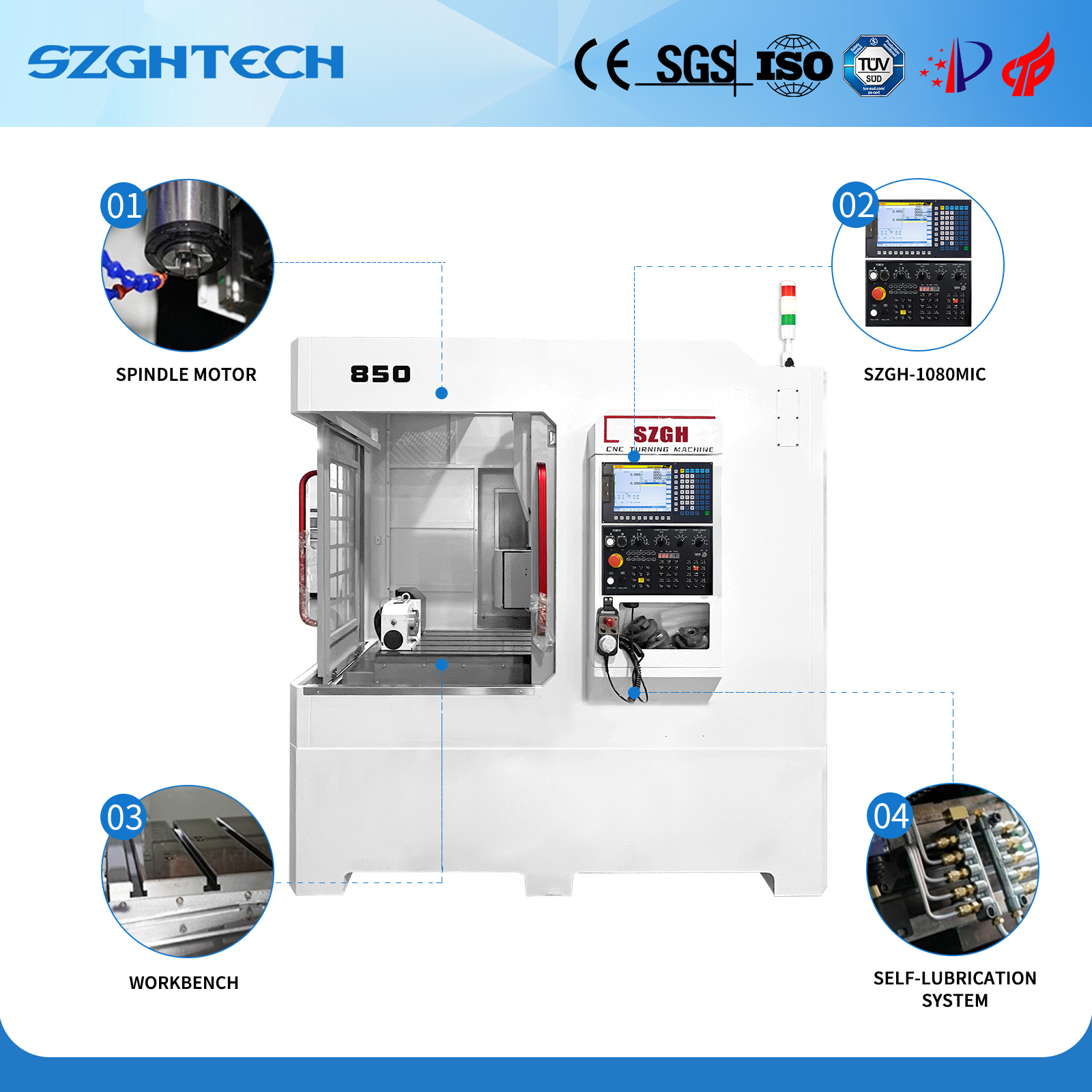

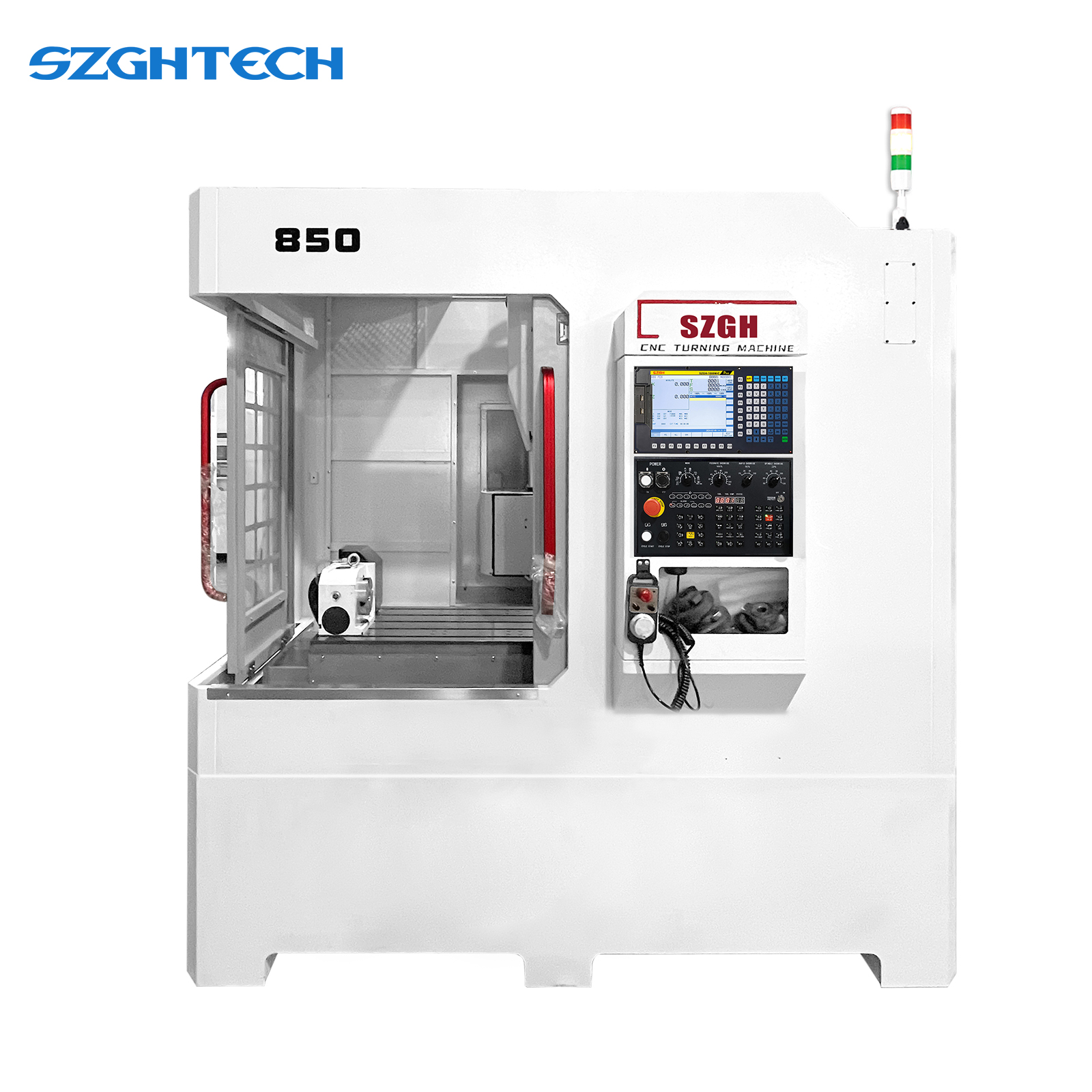

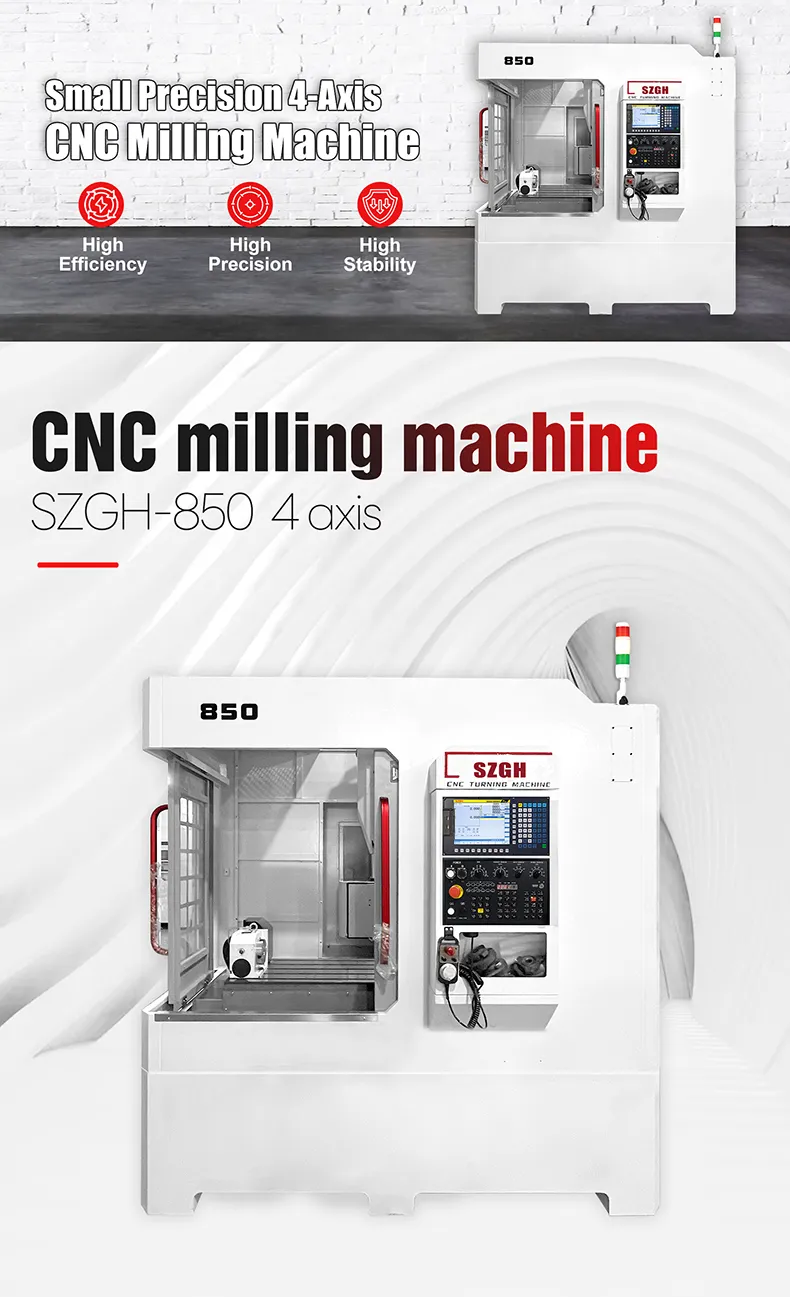

SZGH-850 Multifunctional milling machine high quality

As a high-quality milling machine, the SZGH-850 multifunctional milling machine holds a significant position in the machining industry thanks to its superior performance. It not only provides basic milling functions but also expands its processing capabilities through the addition of various accessories. The addition of a four-axis rotary table and support for a workstation tool magazine significantly elevates the machine to the level of efficient and precise machining typically associated with machining centers.

Adding a four-axis rotary table to the SZGH-850 multifunctional milling machine is a key step in enhancing its processing capabilities. This configuration enables the milling machine to complete multi-faceted three-dimensional machining in a single clamping, fundamentally changing the traditional machining model that requires multiple clampings. Traditional machining often requires multiple clamping and positioning steps for workpieces with multiple machining surfaces, which is not only time-consuming but also prone to positioning errors caused by multiple clampings, compromising workpiece accuracy. The four-axis rotary table, however, precisely rotates the workpiece around its axis. Combined with the milling machine's three linear axes (X, Y, and Z), it enables the machining of multiple side faces, inclined surfaces, and complex curved surfaces in a single clamping. This ability to complete multi-faceted three-dimensional machining in a single clamping setup offers significant advantages in fields such as mold manufacturing. Mold parts often have complex three-dimensional structures, requiring multi-faceted drilling, tapping, and three-dimensional engraving. For example, the cavities and cores of plastic molds often contain multiple perpendicular or angled hole systems and curved surfaces. Using traditional milling machines for this process requires repeated clamping and workpiece positioning, which is not only inefficient but also difficult to maintain positional accuracy between machined surfaces.

The SZGH-850 multi-function milling machine, equipped with a four-axis rotary table, can precisely control the workpiece's rotation angle, allowing the tool to machine the workpiece in different orientations, ensuring the relative positional accuracy between machined features and meeting the stringent high-precision requirements of mold manufacturing. Furthermore, reducing clamping times reduces the risk of workpiece scrap due to improper clamping, thereby improving product quality.

In addition to the processing flexibility provided by the four-axis rotary table, the SZGH-850 milling machine's support for station tool changers further enhances its processing efficiency and automation. The SZGH-850 milling machine, when equipped with external axes, supports up to an 8-station tool magazine. External axes are typically added to achieve more complex motion paths to meet the machining requirements of specialized parts, and an 8-station tool magazine provides ample tool reserves for such complex operations. During machining, the milling machine automatically retrieves the required tools from the magazine according to the machining program, eliminating the need for frequent manual tool changes and reducing auxiliary machining time. For example, when machining a part requiring multiple operations such as face milling, drilling, and boring, the 8-station tool magazine can accommodate a variety of tools, including face milling cutters, drills, and boring tools. The milling machine automatically switches tools for continuous machining, significantly improving efficiency.

In addition, the SZGH-850 milling machine, when equipped with external axes, supports up to a 10-station tool magazine. "External axis machining" here refers to the fact that the milling machine requires a greater number of tools when utilizing external axes for actual machining operations, and the 10-station tool magazine perfectly meets this requirement. More workstations mean it can accommodate a wider variety of tools of varying specifications, making it suitable for more complex machining tasks. For example, when machining large parts with diverse hole sizes and surfaces requiring varying precision, the 10-station tool magazine can accommodate drills, reamers, taps, and milling cutters of varying diameters, ensuring the optimal tool is used for each process. This ensures machining quality while avoiding interruptions due to tool shortages. This support for a multi-station tool magazine brings the SZGH-850 milling machine closer to the level of a professional machining center in terms of automated machining, better adapting to the demands of mass production and complex part machining.

In summary, the SZGH-850 multi-function milling machine, with its added four-axis rotary table for multi-faceted machining and support for 8- and 10-station tool magazines, fully demonstrates its capabilities as a high-quality milling machine, embracing the capabilities of a machining center, providing reliable support for efficient and precise machining of a wide range of complex parts.
