Brand new grinding robot, arm span 1400, load 30 kg, full RVreducer, good rigidity, suitable for welding bead grinding.

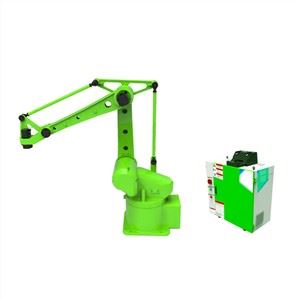

50KG Handling Robot Arm


Brand new grinding robot, arm span 1400, load 30 kg, full RVreducer, good rigidity, suitable for welding bead grinding.
Send Inquiry

High quality BP robotic arm 4-axis robotic arm 100kg 4 robotic arm kit

GH-B3100-G-4 robot is dedicated to welding; easy operation, high efficiency and safety;


GH provide you with completely Robot solutionapplicated to welding, spray, yards , handling,grinding, loading and so on :

1) CNC welding robot arm support 4 axis to 11 axis ,widely use to welding,painting, move, and plasma cutting, and grinding application. it can save your cost from manpower,also more effeiction and safe operation , higher precision, it can work 24 hours for you!!

2) Brand new grinding robot, arm span 1400, load 30 kg, full RVreducer, good rigidity, suitable for welding bead grinding

3) Universal economic of type can beapplied to sprayed, yards, handling, loading andunloading

4) According to client'demand,we cancustomized to different application solution, and specification, size , different color for robot body too.

5) Presently our robot system support the Russian and Vietnamese language

6) Presently our Robot has ,been exproting to lots Country with big quantities such as:Russia,Vietnam, Portugal, and Egypt, USA,Romanic, sebia, Poland, Brazil etc Welcome to consult

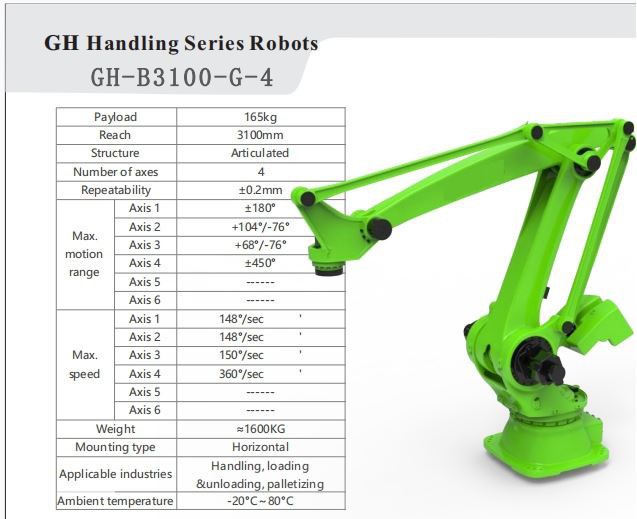

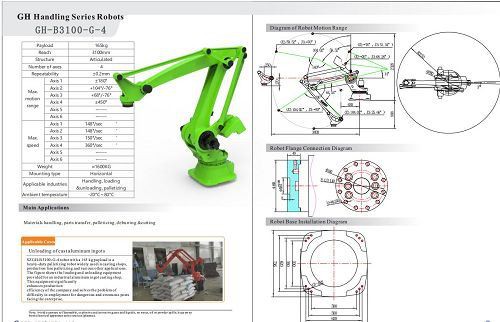

21.1

Payload

165kg

Reach

3100mm

Axes

4

Application

Materials handling, parts transfer, palletizing, deburring &cutting

Special Service

1. We can customize the standard color as you need!
2. We can customize your company logo!

After Warran

Video technical supports , Online supports

20.6

Hanging line tracking and painting

GH-B1850-D-4 is the earliest painting robot

launched by the company. With a payload of 4 kg

and a reach of 1500 mm, it is generally integrated

with various non-standard turntables or hanging

equipment to form work stations.

The figure shows the hanging line tracking and

painting solution provided for a customer. It not

only significantly reduces labor cost but also improves the yield.

19.4(001)


Applicable Cases

Palletizing of materials in bags

GH-B1850-D-4 robot with a 20 kg payload is a

medium-duty palletizing robot. Compared with other robots,

this robot has a moderate payload and has certain advantages in

palletizing height and scope. The figure shows the diagram of

the box packaging line handling &palletizing scheme provided for a

customer. It can realize handling and palletizing of packaging

boxes of medium weight.


20.1(001)


Robot controller systems

1)Structural optimization algorithm suitable for the body control of various types of structure.

2)Modular setting of functionssuitable for diverse applications. 8-axis control realizes the control of external axes (traveling axes and positioner).

3)Suitable for multiple increments; absolute servo.

Open structure for synchronization of international technology and extension of functions.

4)Software PLC functions facilitate logic control.

Process functions make programming easy.

5)Improved computer bus connection ensures reliability and practicability.

6)Safety module ensures safe production of the robots.

Industrial standards &reliable stability.


20.9(001)


Best & Professional after- sales supports

Our company have very professional engineers teams ;

We can provide the professional after -sales service to our all clients ;


Best feedback form our Clients !

Best supports !! Quicly reply !!

Buy at ease , use at ease !!!

17.4

FAQ

Q: Do you support customized manufacturing?

A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample price.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.


If you have another question, pls feel free to contact us as below


Send Inquiry

FAQ

The following are the common questions we have collected about Robot Arm.
Q1. What materials can robotic laser welding handle?
+
A1:Robotic laser welding works excellently on carbon steel, stainless steel, and titanium. It can also weld aluminum and copper, but these highly reflective materials require more powerful lasers and precise parameter control to overcome their reflective nature.
Q2. How precise do the parts need to be?
+
A2:Extremely precise. Laser welding focuses energy on a tiny spot, so gaps between parts must be minimal. High-precision fixtures are mandatory to hold parts perfectly, as even a small gap can lead to burn-through or a weak weld.
Q3. Why choose robotic laser welding over MIG or TIG?
+
A3:Choose it for speed, precision, and minimal heat. It's significantly faster than TIG and MIG, creates very narrow welds, and puts so little heat into the part that there is almost no distortion. It is ideal for high-volume, high-quality applications where aesthetics and part integrity are critical.
Q4. What materials can robotic laser welding handle?
+
A4:Robotic laser welding works excellently on carbon steel, stainless steel, and titanium. It can also weld aluminum and copper, but these highly reflective materials require more powerful lasers and precise parameter control to overcome their reflective nature.
Q5. How precise do the parts need to be?
+
A5:Extremely precise. Laser welding focuses energy on a tiny spot, so gaps between parts must be minimal. High-precision fixtures are mandatory to hold parts perfectly, as even a small gap can lead to burn-through or a weak weld.
Q6. Why choose robotic laser welding over MIG or TIG?
+
A6:Choose it for speed, precision, and minimal heat. It's significantly faster than TIG and MIG, creates very narrow welds, and puts so little heat into the part that there is almost no distortion. It is ideal for high-volume, high-quality applications where aesthetics and part integrity are critical.
Q7: How can robotic TIG welding solve my challenges with consistent, high-integrity welds on critical components?
+
A7: Human fatigue and subtle variations are the biggest enemies of perfect welds. Our robotic Tig welding systems eliminate this. The robot precisely repeats the exact same arc length, travel speed, and filler metal placement every single time. This means: Zero Defects: Drastically reduces porosity, undercut, and inconsistencies. Perfect Penetration: Ensures optimal weld penetration for maximum strength, which is crucial for aerospace, medical, or automotive applications. Flawless Aesthetics: Delivers a clean, shiny, and uniform bead that requires little to no post-weld finishing, enhancing the value of your product.
Q8: My current welding process is too slow and expensive. How does robotic TIG welding provide a fast Return on Investment (ROI)?
+
A8: While manual TIG is slow and skill-dependent, automation transforms your cost structure. The ROI comes from multiple streams: Dramatically Higher Throughput: The robot works 24/7 without breaks, welding significantly faster than even the most skilled human. Massive Material Savings: Precise control means you use exactly the right amount of expensive filler metal and shielding gas, eliminating waste. Reduced Rework & Scrap: Superior consistency means you spend less time and money fixing bad welds or scrapping expensive parts. Most of our clients see a full ROI in under 12 months.
Q9: My production involves complex parts and short runs. Isn't robotic welding only for high-volume, simple tasks?
+
A9: That's a common myth! Modern robotic TIG cells are built for flexibility. With features like: Easy Programming: User-friendly touchscreen interfaces and lead-through teaching allow you to program complex paths in minutes, not hours. Advanced Seam Tracking: The system can automatically find and follow the weld joint, compensating for part misalignment or thermal distortion. Quick-Change Tooling: Switch fixtures rapidly to weld different components in the same cell.
