GH-13150CC is 1500W 6Nm 2500RPM, AC servo motor, middle inertia , high rotation speed, with extremely high performance price ratio and use reliability ，optimum matching with our AC servo driver to real ize optimum servo performance.

1.5kw 10NM AC Servo Motor And Driver


GH-13150CC is 1500W 6Nm 2500RPM, AC servo motor, middle inertia , high rotation speed, with extremely high performance price ratio and use reliability ，optimum matching with our AC servo driver to real ize optimum servo performance.
Send Inquiry

1.5kw 10NM AC Servo Motor And Driver For CNC Controller

Haa3dc96ae07547a6b2fa4dc2dd160083x

Features

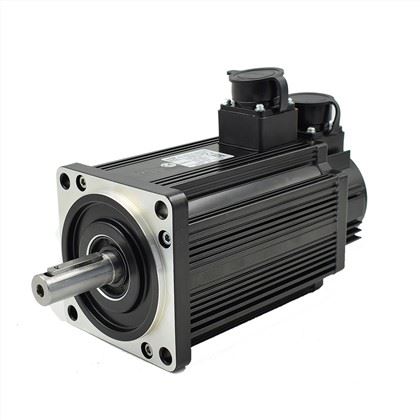

GH-13150CC is 1500W 6Nm 2500RPM, AC servo motor, middle inertia , high rotation speed, with extremely high performance price ratio and use reliability .

There is a type servo driver, GH-SD2026, which that matching for 1.5KW servo motor.

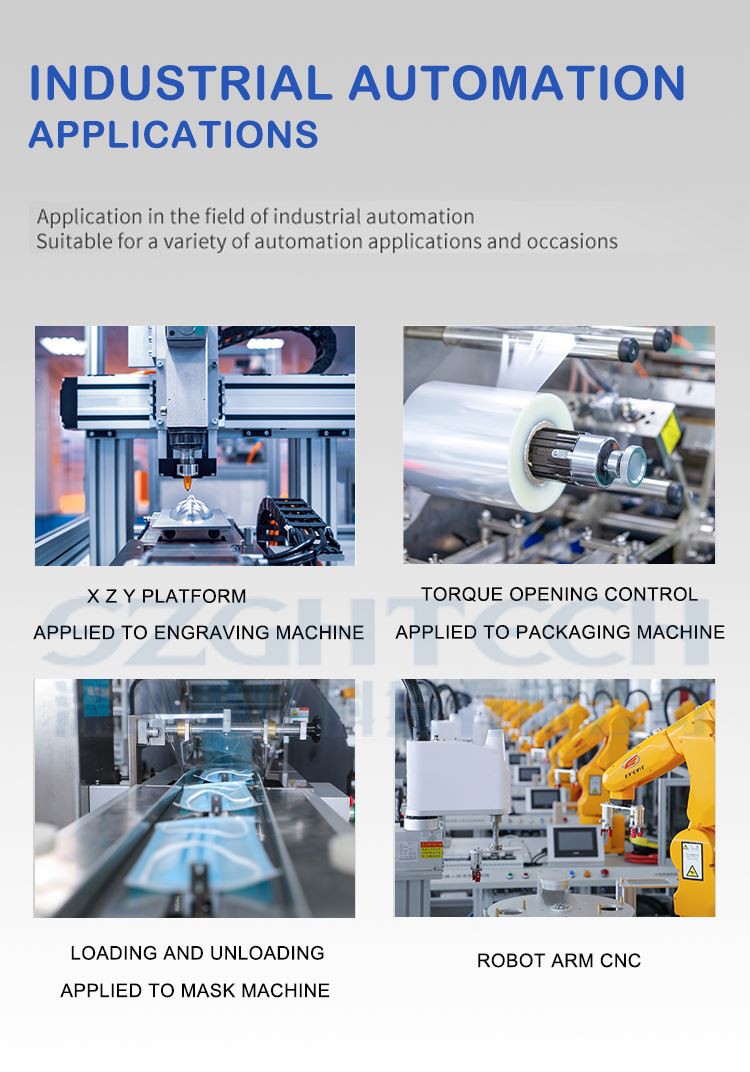

Application

Our servo motors are suitable for helping ch machine tool feed axes to achieve extremely smooth operation and excellent acceleration and deceleration performance.


Using high-speed, high-precision photoelectric encoder, and high-performance drive unit can be used for high-precision speed and position control.

The use of high protection grade such as IP65 ensures that the motor can be used reliably under ambient temperature of -15℃～40℃ and dust and oil mist environment.

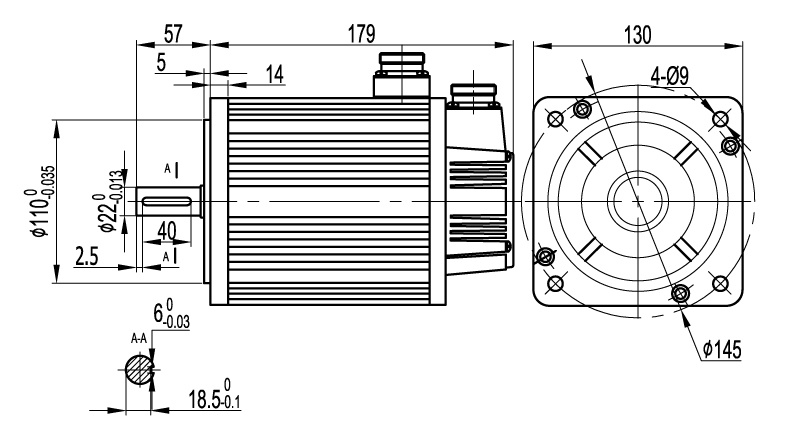

Motor Model SZGH-13150CC
Rated Power(KW)1.5
Rated Voltage(V)220
Rated Crrent(A) 6.0
Rated Speed(RPM) 2500
Rated Torque(NM)6
Peak Torque(NM)18
Voltage Constantv10r/min 65
Torque Coefficient(NM/A)1
Rotor Inertia（Kg.m²）1.26*10-3
Line-Line Resistance（Ω）1.21
Line-Line Inductance(mH) 3.87
Machanical Time-Constant(Ms)3.26
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)7.4

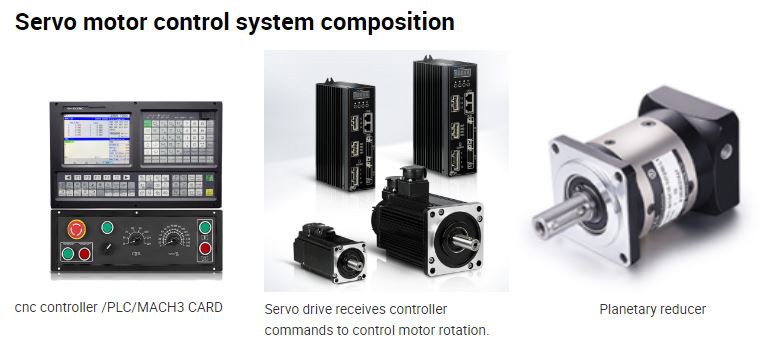

Servo System

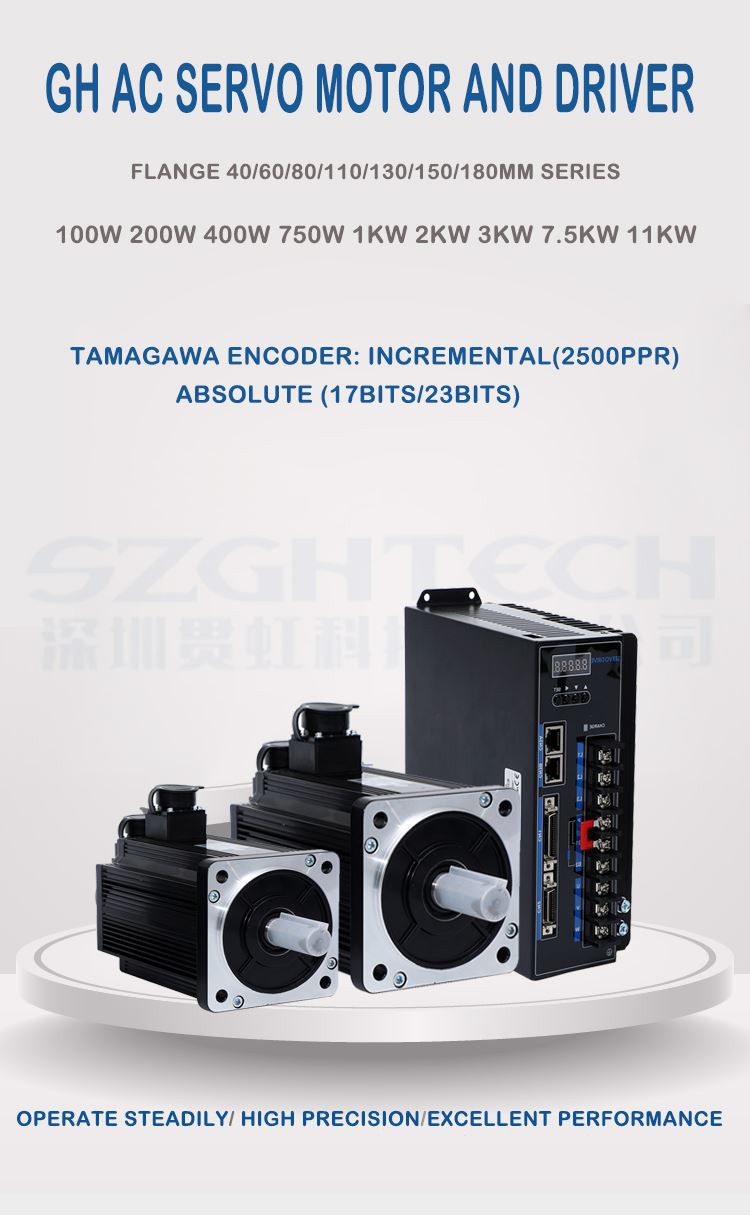

1.With Tamagawa encoder: Incremental(2500PPR/Absolute Servo Motor(17bits/23bits)

2.PositionControl:Pulse+Direction,Modbus:RS485/EtherCAT/Canopen/PowerLink



Servo motor advantages:

1. Strong Overload Resistance

2.High Speed and Excellent Performance


8(001)

_20210817162726

Hbc8c73dbe8b84a958399e641043246d9S

H6aada374ce7d45d883021e74cc0b9923f

]BVIN0(GRPITID%ZGU37~R5

_20210813174452




FAQ

Q: May I know what’s the nearest airport from your company?

A: First shenzhen Airport,,then guangzhou or huizhou airport,welcome to visit us.

Q: When can I get the quotation?

A: We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

Q: What about the lead time for mass production?

A: 6-8 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.


If you have any other question about our 1.5kw 10NM AC Servo Motor And Driver , pls feel free to contact us as below!
