CNC lathe Controller: 1)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 2)Threading Cycle: Following Mode/Interpolate Mode 3)Scanning Function & Auto Tool Setter/Probe

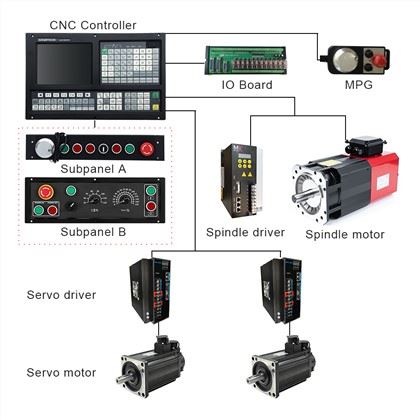

2 Axis Cnc Controller Kit With Servos


CNC lathe Controller: 1)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V 2)Threading Cycle: Following Mode/Interpolate Mode 3)Scanning Function & Auto Tool Setter/Probe
Send Inquiry



1000MC-3

Number of control axes

2 axes

Minimum programming

0.001mm

Display8.4 inch color screen
interfaceUSB+RS232 Communction Port

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Encoder lines

Any setting

PLC programming

The user is free to design PLC function

Support Built-in standard PLC program,and can be customized edited according to customer's askes
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
Communication functionRS232, U disk interface
FunctionATC+PLC and macro function
Manual continuousOne axis or simultaneous multi-axis
User macro programYes
MenuEnglish menu
Produce time5~7 days except for Customized logo or package


1) 3-5 Axis Fully English Type CNC lathe controller

2) 800x600 8.4 inch real color LCD displayer

3) Support Stepper/Increment/Absolute/EtherCAT/Powerlink Servo for Feeding Axes

4) High anti-jamming switch power(100V-240VAC 50Hz/60Hz- >24VDC)


ATC function：Electric Turret/Binary Turret/Servo Turret/Special Turret


PLC functions:

1）45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)

2）Support PLC warning and PLC alarm.
3）Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.


Precision compensation:
1)Thread pitch error compenstation: Compensation points, compensation interval, compensate original position can be set.
2）Backlash compensation: can set reverse interval to interpolation machine tool by fixed frequency or lifting speed mode.


Tool functions:

1)Tool length compensation
2)Tool point radius compensation (C type)


Application : CNC Lathe & Turning Machinery and specially automatic equipment



1.-&(1000TC)

3.-(1000TC)

4.-&(1000TC)

We can provide you with a complete set of customized CNC kits,
which is very convenient and efficient for you.


GH-1000TC

Multiple function:

It can reallize the drilling / boring,roughing of roungroove / rectangle roove, finishing of full circle / rectangle, continous drilling of straight line / rectangle / arc etc.


7.-()

8.-&&()

9.-&()


FAQ

Q1: Do you support customized manufacturing?

A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.


Q2. When can you receive our order?

A: All goods will be produced well within 5 to 7 workdays, except the customized products.


Q3. what can you buy from us?

A: Servo motor,servo drive,cnc controller,planetary gearbox,gear and rack


Q4. what services can we provide?

A: Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union;
Language Spoken:English,Chinese


Q5.Does your CNC support booting logo exchange?

A: Yes, no problem.


If you have any other question about our cnc lathe controller kit, pls feel free to contact us as below.Any order requirement,  pls do not hesitate, we must do good support to you! come on!
